Pneumatic machine for fatigue test installed in the workshop of our client

Machine for fatigue test installed in the workshop of our clientThe photo shows the assembled pneumatic machine for fatigue test installed in the workshop of our client.

From the left you can see the PC+monitor+RTC9001controller, in the center there are the test rig with the pneumatic actuator, the proportional servovalve, on the bottom you can see the air treatment unit. On the right you see the UPS group.


Load strength test and fatigue test on ceramic plate 90x90x1.8cm

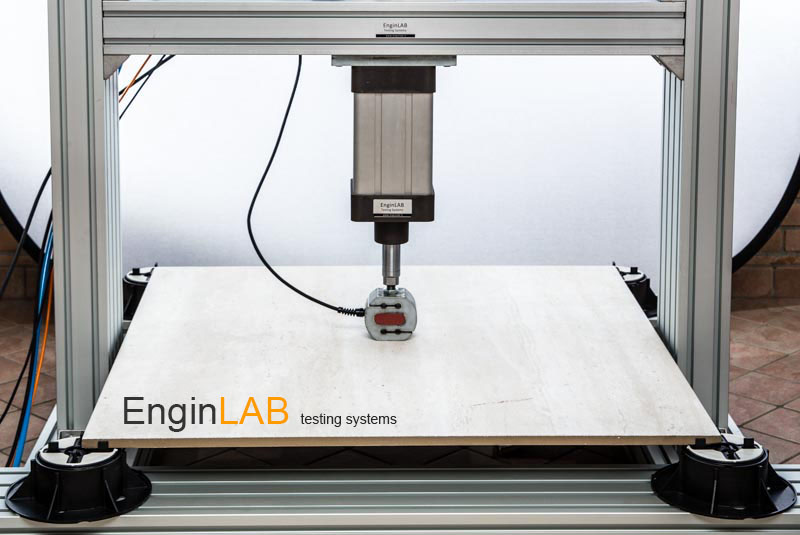

Load strength test on ceramic plate 90x90x1.8cmThe customer wanted a versatile test system for testing ceramic plates.

Plate dimension: 90x90x1.8 cm

One hour of training and the client was able to perform strength test and fatigue test with our controller RTC-9001. Forces up to 8kN.
