RTC-9001 Real Time Controller

Download the brochure: Controller for Fatigue Test

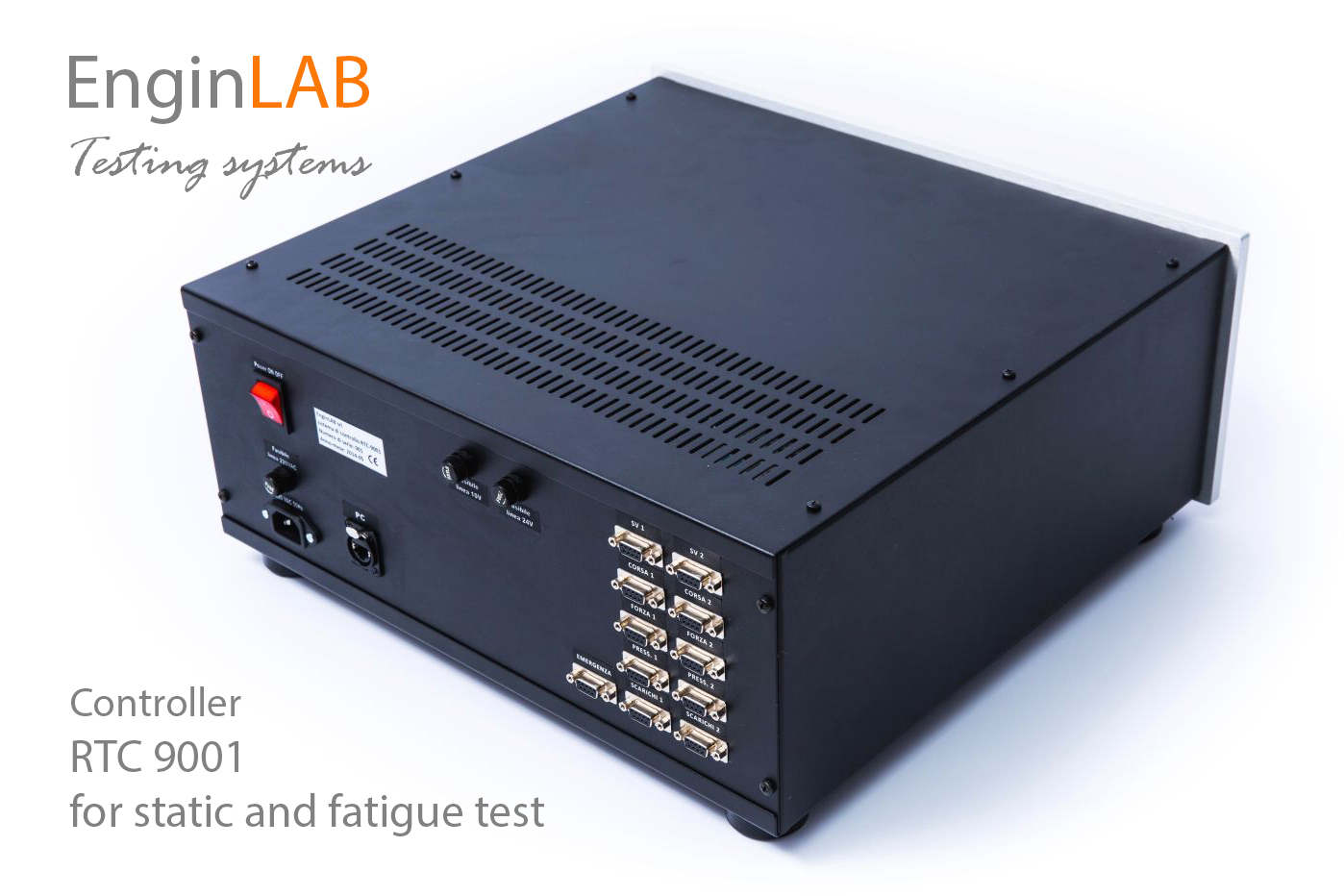

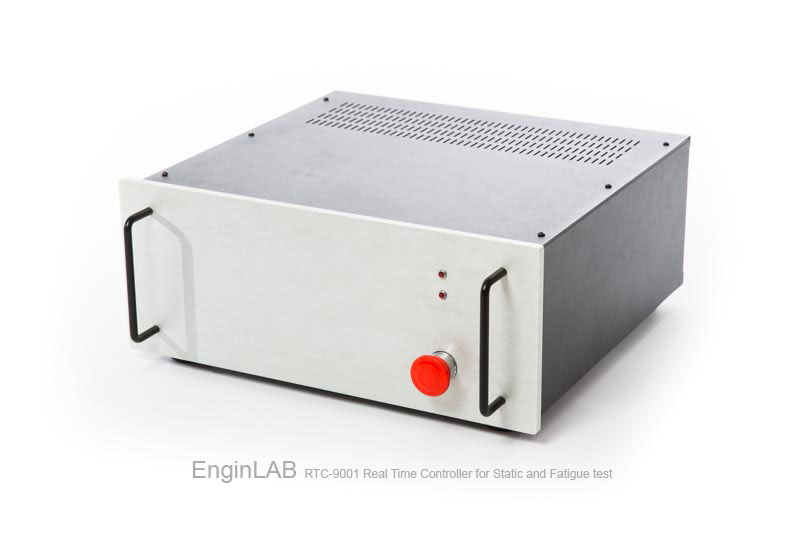

EnginLAB designed the RTC-9001, Real Time Controller, keeping in mind the need for laboratories and industries to easily perform static and fatigue test with a very powerful and cost effective system.
The RTC-9001 electronic can control any actuator equipped with a servo-valve or a servo-drive with analog input control in the range of ±10V, ±5V, 0-10V.
The Software is powerful and user friendly, check it on EnginLAB YouTube channel. The RTC-9001 training is completed in less than an hour.
The software is also available for torque test.

Controller characteristics

• PID control loop based on National Instruments FPGA board and Real Time Processor
• 1kHz control loop rate (5kHz on request)
• selectable PID output voltage
• PID coefficients can be changed on the fly
• amplitude control during fatigue test
• actual cycles monitoring
• sensors max min monitoring versus cycles
• analog input ±10V for Force Transducer
• analog input ±10V for Displacement Transducer
• analog input ±10V Aux1, Aux2 (on request)
• Load or Displacement feedback control selectable on the fly
• SetPoint with ramp mode and hold, sine triangular and squared waves
• safety limits both for force and displacement
• Force versus Displacement graph
• Procedure test editor
• Continuous Recording, Max Min Vs. Cycles recording
• Export data to csv format
• user interface developed with Labview
• 24V Digital outputs for servo enable and manifold control
• Sensor Calibration Tool for table data calibration coefficients
• Save and load for different system setup
• Power Supply 220V, 50Hz
• Option of two actuators control (on request)
• Option of additional input sensors like strain gauges (on request)
• Control software customization (on request)
